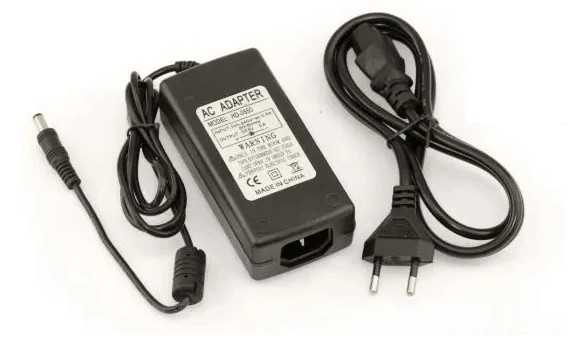

Alimentation DC5V 5A
Tension d’entrée: AC220V-240V
Tension de sortie: DC5V
Courant de sortie: 5A
Alimentation 5V/5A
description de Alimentation 5V/5A
Alimentation DC5V 5A
Tension d’entrée: AC220V-240V
Tension de sortie: DC5V
Courant de sortie: 5A
Il s’agit d’un module d’alimentation 5A DC-DC module abaisseur 24v/12V à 5V module convertisseur de puissance. Avec schéma de redressement synchrone, tension large, courant élevé et rendement élevé.
| MODEL | MS-25-5 | MS-25-12 | MS-25-24 | MS-25-48 | |
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Rated current | 5A | 2A | 1A | 0.5A | |
| Current range | 0-5A | 0-2A | 0-1A | 0-0.5A | |
| DC power | 25W | 25W | 25W | 25W | |
| Voltage ADJ.range | +10,-5% | ±10% | ±10% | ±10% | |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | |
| Ripple and noise | 50mVp-p | 50mVp-p | 50mVp-p | 50mVp-p | |
| Intet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±1% | ±0.5% | ±0.5% | ±0.5% | |
| Intput | AC voltage range | AC100~240V 47~63Hz ; 240~370VDC | |||
| Current | 0.5A/115V 0.25/230V | ||||
| Effi ciency | 76% | 80% | 81% | 81% | |
| AC Inrush current | Cold-start current 15A/115V 30A/230V | ||||
| Leakage current | < 0.5mA/240VAC | ||||
| Protection | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | |||
| Over voltage | 5.75~6.75 | 13.8~16.2V | 27.6~32.4V | 55.2~64.81 | |
| 200ms,100ms,30ms | |||||
| Safety | Setup,rise,hold up time | 200ms,100ms,30ms | |||
| Vibration | 10~500Hz,2G 10min,/1 cycle | ||||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | ||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | ||||
| ±0.03%/°C (0~50°C ) | |||||
| Environment | Temperature coeffi cient | ||||
| Working temperature and humidity | -10°C ~+60°C,20%~90%RH | ||||
| Store temperature and humidity | -20°C ~+85°C,10%~95%RH | ||||
| Overall dimension | 85×58×37mm 100PCS/CARTON | ||||
| Other | Weight | 0.18Kg | |||
| Certificate | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | |||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | |||||
Alimentation
5V
5A
