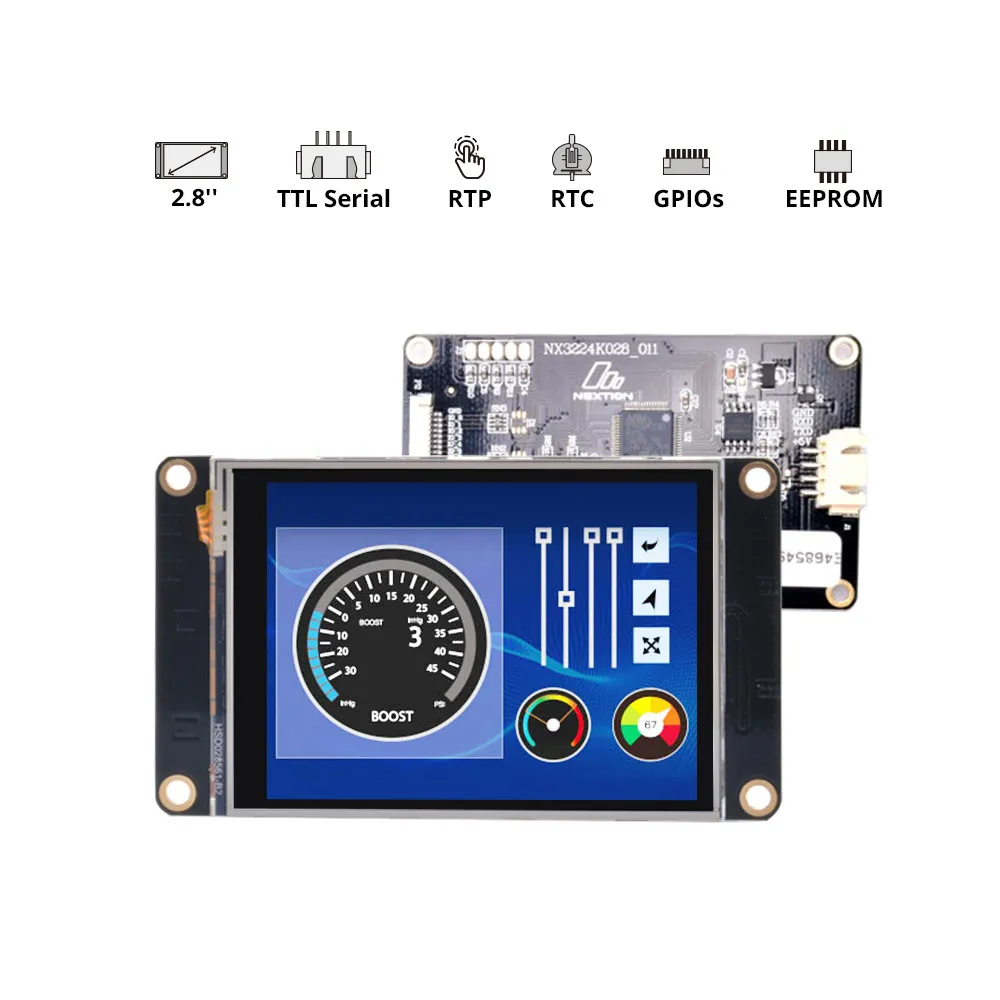

Nextion Enhanced NX3224K028 2.8” HMI Touch Display

In Stock
د.ت 219,000 Original price was: د.ت 219,000.د.ت 189,000Current price is: د.ت 189,000.
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
[woosc type="link"]
Other people want this. 4 people have this in their carts right now.
  1. Supports built-in RTC
  2. Supports GPIO
  3. SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
  4. Instruction buffer: 1024 bytes
  5. Color: 65K (65536) colors
  6. Resolution: 320×240 pixel
  7. Adjustable Brightness:0~180 nit- the interval of adjustment is 1%
  8. Certificates: CE/EMC, RoHS (certificates)

Description

Description

The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock.

Nextion Enhanced NX3224K028 is a powerful 2.8” HMI TFT display, with 16MB Flash data storage space, 1024 bytes EEPROM,  3584 bytes RAM. With GPIO supported, now customers can use Nextion to control external devices.

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design.

Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.

Technical support:

For technical support, please open a ticket on Nextion Forum.

Package Includes:
