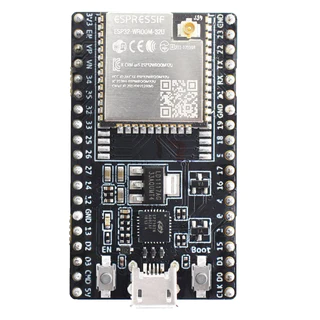

Carte de développement ESP32-WROOM-32U WIFI + Bluetooth
DESCRIPTION DE Carte de développement ESP32-WROOM-32U WIFI + Bluetooth
ESP32-WROOM-32U (16MB)-ESP1 Module: IoT Bluetooth Low Energy,WiFi SMD 18×19,2×3,2mm U.FL ESPRESSIF
Fabricant: ESPRESSIF
Type de module de communication: IoT
Genre de réseau: Bluetooth Low Energy
Genre de réseau: WiFi
Tension d’alimentation: 3…3.6V DC
(Interface: GPIO Interface: I2C Interface: I2S Interface: IR Interface: SD Interface: SDIO Interface: SPI Interface: UART)
Puissance d’émetteur: 20dBm
Sensibilité du récepteur: b: -91 dBm
Sensibilité du récepteur: g: -75 dBm
Montage: SMD
Dimensions: 18×19.2×3.2mm
Genre du connecteur: U.FL
bande: 2,412G…2,484GHz
Capacité de mémoire Flash: 16MB
Composants: ESP32-D0WD
Nombre de noyaux: 2
Microcontroller: ESP-WROOM-32
USB to Serial Port Chip: CP2102-GMR
Operating Voltage: DC 5V
Operating Current: 80mA (average)
Current Supply: 500mA (Minimum)
Operating Temperature Range: -40℃ ~ +85℃
1 WiFi mode: Station/SoftAP/SoftAP+Station/P2P
WiFi protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps)
WiFi frequency range: 2.4 GHz ~ 2.5 GHz
Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards
Dimensions: 55mm*26mm*13mm
Weight: 9.3g
